High Pressure Air Knife

Magnum Force

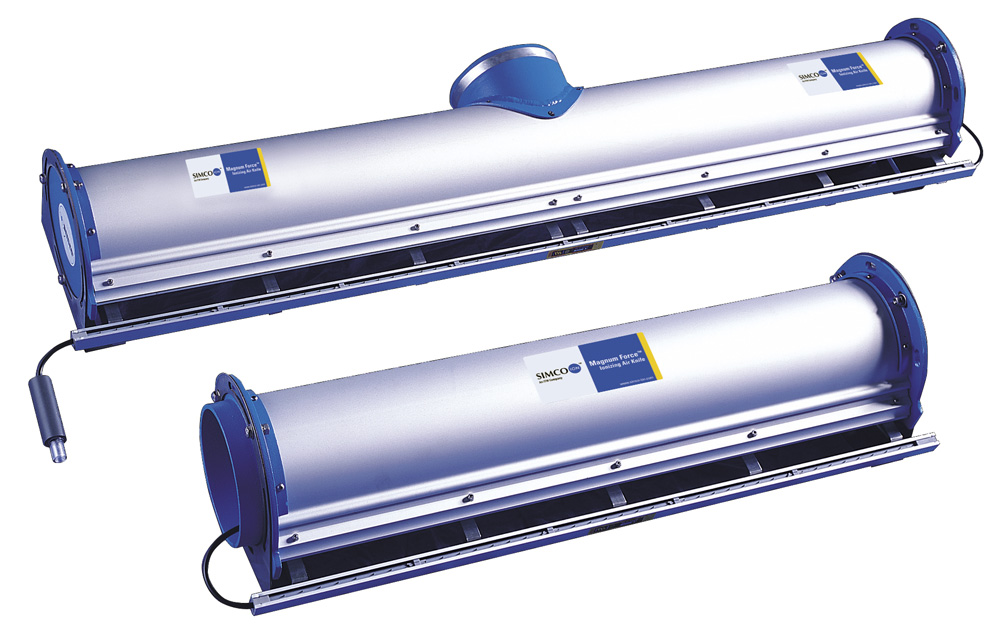

Magnum Force Static Control Air Knife Systems are custom-designed to provide superior heavy-duty surface cleaning or drying. They perform like compressed air knives, but use a blower instead of plant air, reducing operating costs by 30% to 70%. When combined with Simco-Ion's static control bars, Magnum Force becomes a powerful tool for removing dust and dirt from flat or contoured surfaces. Where liquid removal is required, Magnum Force Systems are ideal because of their powerful forced air thrust, low operating cost, and efficient operation.

Features

Clean, dry, uniform air provides superior cleaning capability
Adjustable air thrust blades provide flexibility of performance
Easy installation and positioning
Corrosion resistant body and brackets

Specifications

Magnum Force
Air Velocity	Output orifice adjustable from 0.032" to 0.250"
Inlet Connection	Air knife supplied standard with end inlet; center inlet and double top inlet options available
Mounting	Stainless steel, flanged support collars and hardware
Enclosure	Anodized aluminum for corrosion protection; powder-coated ends and center inlet collars
Dimensions	4" dia. up to 48"; 6" dia. up to 120" (available in 6" increments; custom sizes available)
