AeroBar 5685

Steady State DC for Laminar Flow Hoods & Mini-environments

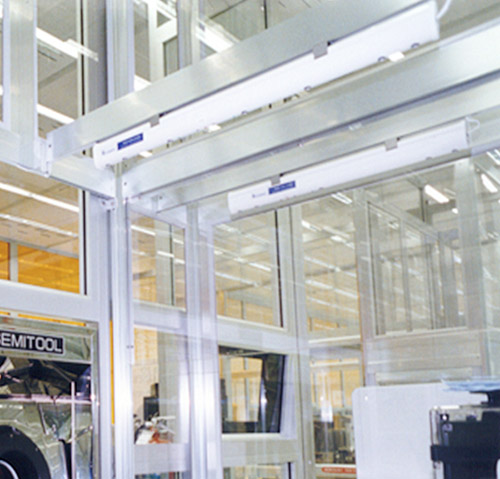

AeroBar Ionizer Model 5685 is designed to control static charge in mini-environments, laminar flow hoods and workstations. The Model 5685 features a unique aerodynamic design that ionizes a local area without disrupting laminar flow. Ideal in 12-24 inch distance applications with laminar air flow, the Model 5685 utilizes steady-state DC ion emission and Simco-Ion’s IsoStat® Technology. IsoStat technology guarantees intrinsically balanced ionization. No complicated feedback circuits are required to maintain balance and adjustment is never needed.

Features

IsoStat® technology
Steady-state DC ion emission for high ion density
Single-crystal silicon or titanium emitter points
Multiple lengths, including short 11 inch AeroBars

Benefits

Intrinsically balanced output of both positive and negative ions, making it ideal for any surface charge applications; low offset voltages; no calibration needed
Fast discharge when combined with typical laminar air flows for ion delivery
Compatible material choices for any process; silicon, the industry standard for semiconductor manufacturing, titanium for disk drive and other clean technology applications; ISO 14644-1 Class 3 standards (Fed. Std. 209e Class 1) equivalent
Ability to install in a multitude of hood, workstation and mini-environment sizes

Specifications

AeroBar 5685
Input Voltage	24 VAC (±10%), 50-60 Hz, 3.5W (max)
Balance	±50V @ 24" measured directly below two opposite polarity emitter points (Model 5685 must be mounted at least 6" away from grounded surfaces for optimum balance performance)
Discharge	25 sec or less for ±1000V to ±100V discharge @ 24" with min 60 fpm airflow
Ion Emission	Steady State DC
Emitter Points	Single-crystal silicon, machined titanium
Dimension	2.1H x 1.13W x 11, 22, 44, 64L in. (5.3H x 2.9W x 27.9, 55.9, 111.8, 162.6L cm)
Weight	9 oz per foot of bar length (255g per 0.3m)
