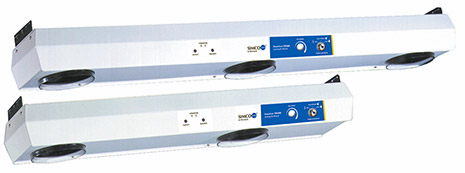

Cleanroom CR2000

Guardian CR2000 Blower is designed specifically for use in cleanroom applications. The Guardian CR2000 features a patented circuit that results in balanced delivery of positive and negative ions, which ensures that the unit will maintain an ion balance of 0 ±5V. Balance stability is further enhanced by use of Simco-Ion’s unique “ion shields” at the fan outputs to reduce parasitic ion loss.

Features

Inherently balanced to 0 ±5V
Ion balance and ion output monitors
Lockout key switch
Silicone-free component surfaces
Integrated emitter point cleaner

Specifications

Cleanroom CR2000
Input Voltage	2-fan: 120 VAC, 50/60 Hz, 0.2A; 230 VAC, 50/60 Hz, 0.1A 3-fan: 120 VAC, 50/60 Hz, 0.3A; 230 VAC, 50/60 Hz, 0.15A
Discharge	3.0 sec @ 18" center blower position fan high (1000-100V)
Balance	0 ±5V @ 18" from blower face
Coverage Area	2-fan: 2' x 3' 3-fan: 2' x 4'
Cleanroom Class	Meets ISO 14644-1 Class 4; Fed std. 209E Class 10
Dimensions	2-fan: 31.75"W x 4"H x 6.75"D (81 x 10 x 17 cm) 3-fan: 42.75"W x 4"H x 6.75"D (109 x 10 x 17 cm)
Weight	2-fan: 12 lb (5.5 kg) 3-fan: 15 lb (6.8 kg)
