Small Area FusION

Small Area FusION

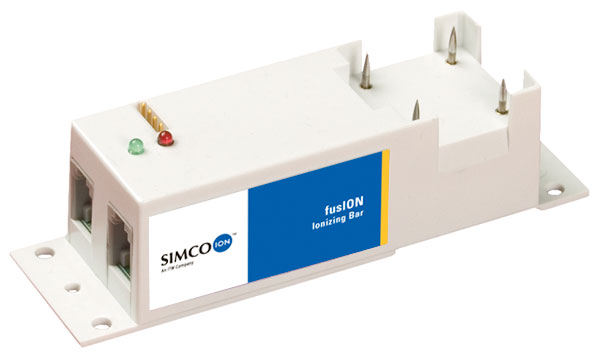

Small area FusION

FusION Ionizer is capable of controlling electrostatic charge in the local area. FusION is easy to install, operate and maintain. Simply mount FusION in a convenient location adjacent to the static problem. Connect the power supply and static charge is eliminated. No adjustments are necessary with Simco-Ion’s auto balancing technology. This incredibly compact ionizer offers tungsten emitters. FusION is also ideal for system integration with remote alarm capability. Multiple units can be linked together from one 24 VDC power source allowing up to 5 units to be daisy-chained. FusION can be powered directly from a process tool’s 24 VDC power source or by the Simco-Ion FusION power supply kit.

Features

  • Compact design
  • Auto balancing technology
  • Visual ionizer status indicator and digital level remote alarm output
  • Single power source for multiple FusION ionizers
  • Optional Fan assembly

Specifications

Small Area FusION

Input Voltage 24 VDC, 0.2A
Discharge w/o fan: <15 sec @ 6" (15.2 cm) with airflow (50 fpm/m)1; w/fan: <10 sec @ 12" (30.4 cm)
Balance <±50V
Coverage 12' x 12" @ 6" spacing
Ion Emissions Steady-state DC
Cleanliness ISO 14611-1 Class 4
Dimension 1.3H x 1.3W x 4.5L in. (3.3 x 3.3 x 11.4 cm)
Weight w/o fan: 0.25 lb (113 g); w/fan: 0.30 lb (136 g)
