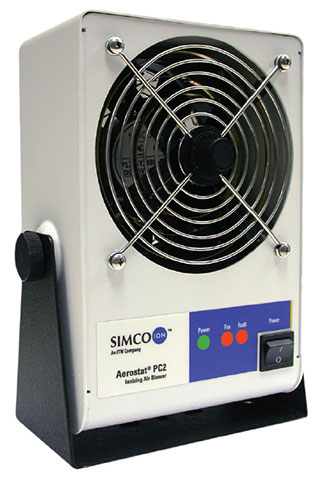

Aerostat PC2

Aerostat PC2

Aerostat PC2

The new Aerostat PC2 provides complete mini environment ionization protection. As with its’ predecessor, the Aerostat PC Ionizing Blower, the Aerostat PC2 is designed and built for reliable, longterm static control for a variety of electronic, semiconductor, flat-panel display and life science assembly applications. The PC2 offers outstanding charge neutralization for targeted mini environments and has sufficient air velocity to provide static control up to 4 feet (1.2m) across a bench-top work surface. The combination of size with the weight-saving design allows the Aerostat PC2 to be easily mounted inside process tools while creating a blanket of ionized air through out the inside tool area.

The Aerostat PC2 offers inherent balance to 0 ±10V for protection of sensitive electronic components. The PC2 is loaded with usability features including an adjustable locking stand, fan speed control and separate balance and fan stall alarm LEDs with optional audible alarm. These features make the Aerostat PC2 the ideal mini environment ionization blower for assembly, test and packaging areas.

Features

  • Discharge time of <2.0 seconds at 1 foot*
  • Lightweight, compact and quiet for unobtrusive use
  • Local alarm LEDs, Facility Monitoring System (FMS) connection and optional audible alarm
  • ±10V self-balancing (“Micropulse”) technology
  • Built-in emitter point cleaner

* Tested in accordance with ANSI/ESD STM3.1-2015.

Benefits

  • Fast, targeted neutralization of static charges
  • Directed ionization designed for both workbench or in-tool areas
  • Worry free Ionization status can easily be monitored locally and at a remote location
  • High precision balance insures controlled and consistent ion output
  • Minimizes the time required to perform normal maintenance

Specifications

Aerostat PC2
Input Voltage 100-240 VAC, 50/60 Hz
Input Current 140 mA
Discharge1 2.0 sec @ 1' (1000-100V high fan speed)
Balance 0 ±10V
Coverage Area 1'W x 4'L
Ion Emission Micropulse AC Ionization
Emitter Points Stainless Steel
Controls Power on/off; fan speed control low/medium/high; emitter point cleaner knob
Indicator Lights Green POWER on, red FAULT alarm, red FAN STALL alarm
Connectors IEC 320/C14 AC Power Cord outlet, FMS fault alarm output connector (RJ-9)
Air Velocity Feet per minute, High = 400 fpm (typ), Med = 325 fpm (typ) Low = 275 fpm (typ)
Air Volume Cubic feet per minute, 130 scfm max (high speed, typ)
Audible Noise 65 db @12" down centerline, 12" off center (high fan speed)
Ozone <0.05 ppm measured at 1' in front of blower
Operating Env. Temperature 50-95°F (10-35°C), humidity 30-60% RH, non-condensing
Audible Alarm Fault and fan stall (optional)
Air Filter 30 ppi open cell polyurethane foam (optional)
Mounting Metal stand with skid resistant rubber feet
Enclosure Powder-coated aluminum chassis
Dimensions 9.1H x 6.8W x 3.3D in. (23.1H x 17.3W x 8.4D cm) with stand
Weight 2.8 lbs (1.25 kg) with stand
Warranty 2 year limited warranty
Certification certifications

1. Tested in accordance with ANSI/ESD STM3.1-2015.
