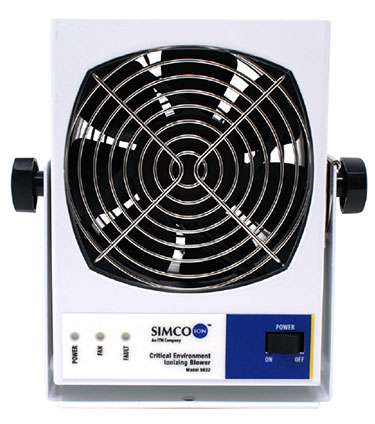

Benchtop Blower Model 5832

The Critical Environment Benchtop Blower Model 5832 provides reliable, fast static charge control for benchtop work areas and small spaces, allowing optimal electrostatics management that minimizes cost and maximizes protection for ESD-sensitive areas. An internal automatic balance correction system ensures ionization continues to reach your target with complete accuracy presenting a significant time and cost savings.

The ionizer can operate with an external sensor to maintain precise balance (better than ±1V) by altering ion output and adapting to environment changes. With the optional remote sensor or Novx feedback/control, the Model 5832 delivers precisely balanced and directed ionized air to your target without taking up valuable room in your environment. A greater concentration of emitter points and internal circuitry suited for high humidity applications makes the Model 5832 the standard choice for environments that need quality ESD protection with solid design.

Features

±3V or better balance (±1V with the optional external feedback system)
Cleanliness rated at ISO 14644 Class 4 (Fed. Std. 209e Class 10)
Options for sensor input, FMS connection, alarms, and management control
Auto-Clean System

Benefits

Provides the best corona-based ESD protection for maximizing yields
Designed for use in an environment with a controlled level of contamination
Increased control with immediate notification of alarms and the prevention of unauthorized adjustment to power or fan speed
Automates emitter point cleaning, reducing maintenance costs and time

Specifications

Model 5802i Ionizer
Input Voltage	24 VDC (470 mA max)
Discharge¹	Better than 2 sec @ 1 ft (typ), taken in-line from the center of the fan (±1000-100V)
Balance	Better than ±1V (typ) with external sensor; ±3V (typ) without sensor
Ion Emission	Steady-state DC (corona discharge)
Emitter Points	ISO 14644 Class 4 (Fed. Std. 209e Class 10) titanium, 8 per fan
Airflow	129 cfm (typ)
Cleanroom Class	Meets ISO 14644-1 Class 4 (Fed Std. 209E Class 10)
Operating Env.	Temperature 50-90°F (10-32°C); humidity 30-70% RH, non-condensing
Ozone	0.005 ppm (typ)
LED Indicators	Green POWER on, red FAULT alarm with optional AUDIBLE ALARM
Audible Noise	High fan speed 61 dB (typ); low fan speed 52 dB (typ); measurements taken 12" (30.5cm) from fan
Mounting	Tilt Lock Mounting Stand
Controls	Power/fan speed DIP switch with 4 speed/velocity settings, balance adjustment, sensor type selection and FMS connections
Options	External sensor inputs with FMS connection, audible alarm
Enclosure	Aluminum chassis with epoxy-polyester powder coat
Dimensions	7.27H x 5.12W x 2.76D in. (18.5H x 13W x 7.0D cm)
Weight	2.2 lb (1 kg)
Warranty	Two year limited warranty
Certifications

1. Tested in accordance with ANSI/ESD STM3.1-2015.

Power Adapter 14-21327
Input Voltage	100-240 VAC 50/60 Hz
Output Voltage	24 VDC, 30W
Dimensions	4H x 1.9W x 1.1D in. (103 x 42 x 29 mm)
Weight	5 oz (140 g)
Certifications
